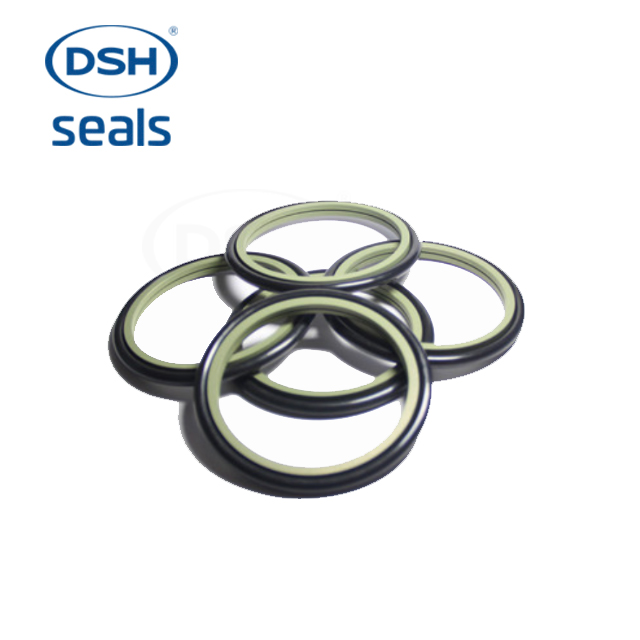

Rotary Glyd Ring Rod Seal
video
Rotary Glyd Ring Rod Seal

Rotary Glyd Ring Rod Seal

Color:Black, Green Certificate:ISO9001:2015 Speed:≤2m/s Pressure:≤30MPa Temperature:-35...+200 degree

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction
DSH Seals

DSH Seals

is a technology production enterprise integrating R&D, production and sales. It owns professional production plants and branches, and is mainly engaged in the research, manufacture and sales of seals in various industries. It has domestic self-owned brands such as DSH, AMT. Its products are exported to overseas markets such as Asia, Europe, United States, Middle East and etc.

Product Description

Application

Application,Mobile hydraulics,Pivoting motors,Machine tools

Material

Seal ring: PTFE

O- ring: NBR

Slide ring: PTFE

Product Name
Rotary Glyd ring rod seal
Slide Ring's Material
PTFE
Slide Ring's color
Black,Green,Brown,coffee etc...
O-Ring's Material
NBR
O-Ring's color
Black
Speed
≤2m/s
Temperature
-35...+200°C
Pressure
≤30MPa
Medium
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids, water,air and others.

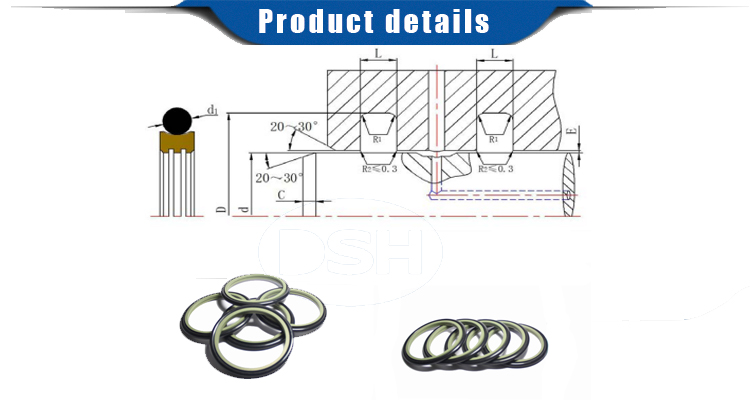

Standard or can fit the groove
Standard or can fit the groove
Size
Dimension table available on request
Application Industry

Engineering Machinery Industry

Rod seal, piston seal, wipers, buffer seal and guide ring are widely used in earth-moving engineering machinery, such as excavator, hammer.

Petroleum Industry

Spring Energized PTFE or PEEK seals are used in petroleum industry, such as Large bore/high pressure frac gate valve and X-mas tree in oilfield.

Hydraulic & Pneumatic Industry

PTFE, PU, NBR Seal can be used in hydraulic & pneumatic, such as hydraulic cylinder and air cylinder

Intelligent Manufacturing & New Energy

Spring Energized PTFE or PEEK seals are used in intelligent manufacturing & New Energy, such as robot industry, uuv.
