Symmetric Spring Energized Seals

Model: PTU
Temperature: -40/+260℃
Speed: ≤15m/s
Pressure: ≤45MPa

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Description

This Symmetric Spring Energized Seal is a bore and shaft seal ring with two functions. The seal ring is constructed of ultra-high molecular weight polyethylene and the spring is stainless steel. It has a high level of wear resistance. This seal is solely intended for static applications. When compared to a single spring seal, the large spring load offers improved scalability. Additionally, this Symmetric Spring Energized Seal is designed exclusively for cryogenic applications. The piston, rod, and face seal configurations are all available. It was not created with a single industry or application in mind. Its chemical and physical qualities make it an effective problem solver in a variety of scenarios.

Specification

Jacket Material	UHPE, PTFE Filled Bronze, Carbon, MoS2, Graphite, Glass Fiber, Ekonol, Polyimide, etc.
Jacket Color	Black, Green, Coffee, Yellow, etc.
Spring Type	V spring, Helical spring, Slant coil spring
Spring Material	SS304, SS301,etc.
Speed	≤15m/s
Temperature	-40 to 260℃
Pressure	≤45MPa
Medium	Virtually all fluids chemicals and gases.
Application	Jet engines, hydraulic cylinders, Robotics, Steering Cylinders, Valves, etc.
Standard or can fit the groove	Military-Industrial AS4716

Pressure	＜160bar	＜250bar	＜400bar
Max Gap E	E≤0.6mm	E≤0.4mm	E≤0.2mm

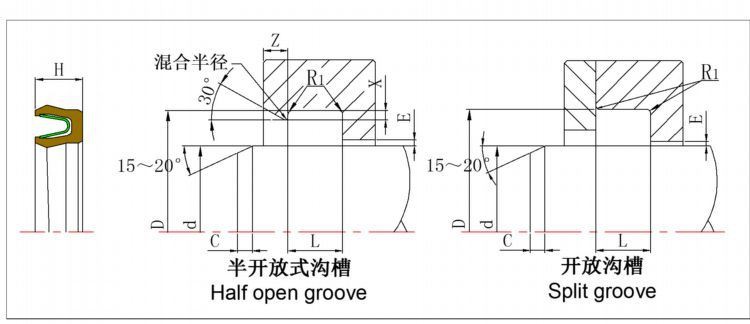

Installation Dimension table based on Metric Size (mm)

d h9	D H9	L +0.2	H	X	R1≤	C≥
3～8	d+2.9	2.4	2.2	0.4	0.2	4
10～18	d+4.5	3.6	3.2	0.6	0.2	5
20～36	d+6.2	4.8	4.3	0.7	0.4	5
40～115	d+9.4	7.1	6.8	0.8	0.4	7.5
120～400	d+12.2	9.5	9.2	0.9	0.4	12
