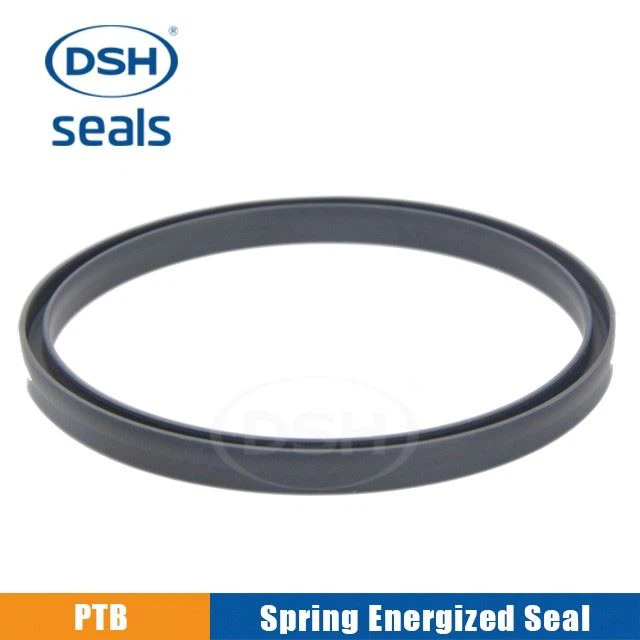

Piston Type Spring Energized Seals

Model: PTB
Temperature: -40/+260℃
Speed: ≤15m/s
Pressure: ≤45MPa

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Description

A modified PTFE jacket and a V-shaped corrosion-resistant stainless steel spring make up this Piston Type Spring Energized Seal, which can respond to rapid temperature fluctuations. It is also extremely wear-resistant and has a long-lasting sealing ring. It possesses self-lubricating properties and does not creep during operation, allowing for precise control. Low friction with no stick-slip, little break-out force, and great wear resistance are all features of these Piston Type Spring Energized Seals. They have an infinite shelf life and are resistant to most liquids and chemicals. If you're interested, please don't hesitate to contact us for additional information.

PTFE jacket has exceptional durability and high tolerance to extrusion. Virgin polyetheretherketone (PEEK) is sometimes recommended for backup rings and high-temperature applications, while formulated ultra-high-molecular-weight polyethylene (UHMW-PE) is valuable for dynamic sealing applications with high wearing forces.

Specification

Jacket Material	UHP, PTFE Filled Bronze, Carbon, MoS2, Graphite, Glass Fiber, Ekonol, Polyimide, etc.
Jacket Color	Black, Green, Coffee, Yellow, etc.
Spring Type	V spring, Helical spring, Slant coil spring
Spring Material	SS304, SS301,etc.
Speed	≤15m/s
Temperature	-40 to 260℃
Pressure	≤45MPa
Medium	Virtually all fluids chemicals and gases.
Standard or can fit the groove	Comply with the standard of the Trelleborg-PVA series, the Parker-JK series

Pressure	＜160bar	＜250bar	＜400bar
Max Gap E	E≤0.6mm	E≤0.4mm	E≤0.2mm

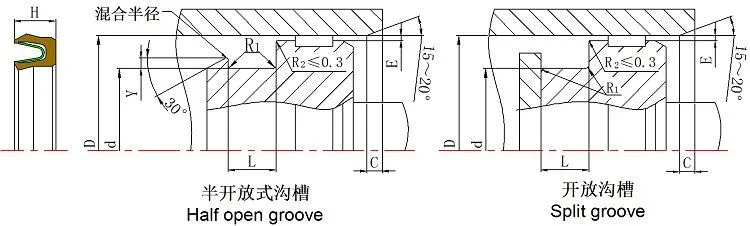

Installation Dimension table based on Metric Size (mm)

D H9	d H9	L +0.2	H	Y	R1≤	C≥
6～12	D-2.9	2.4	2.2	0.4	0.2	4
14～22	D-4.5	3.6	3.2	0.6	0.2	5
25～45	D-6.2	4.8	4.3	0.7	0.4	5
48～120	D-9.4	7.1	6.8	0.8	0.4	7.5
125～500	D-12.2	9.5	9.2	0.9	0.4	12

Feature

The characteristics of these Piston Type Spring Energized Seals are as follows:

● A wide range of high-performance sealing materials

● Excellent performance

● Long service life

● Simple installation and stable dimension

● High temperature, pressure, and corrosion resistance

The company has 5,000 square meters of professional production plants, 2000 square meters of constant temperature and humidity production workshop, and dozens (of sets) of advanced production equipment.
