PU Seal Molded Parts Hydraulic Dust Seals Wiper Seals-Pru

PU Seal Molded Parts Hydraulic Dust Seals Wiper Seals-Pru

Model: DSZL
Temperature: -45/+200℃
Speed: ≤15m/s
Pressure: -

Send Inquiry
Product Introduction

We adhere to the interests of all relevant parties, firm confidence, fulfill the mission, and strive to build the company into an international manufacturer of metric hydraulic wear ring, variseal ring, upi seals that trusted by the public and preferred by customers. All of our employees are trained in professional skills and educated in professional qualities. Our vision is to promote the entire society to embark on a civilized development path of productive development, affluent living and good ecology.

Description

The Hydraulic Cylinder Wiper Seal is a dual-acting, o-ring energized rod wiper/excluder with two distinct wiping tip geometries. The two lips work together to remove dirt from the rod, confine residual oil on rod extension, and allow oil to return to the cylinder. High-speed applications are possible with these Hydraulic Cylinder Wiper Seals, which reduce the possibility of stick-slip. They can provide excellent wear and scrape resistance, as well as a wide temperature and media compatibility range. If you are interested in it, please do not hesitate to contact us for more information.



Specification

Slide Ring Material

PTFE Filled Bronze, Carbon, MoS2, Graphite, Glass Fiber, Ekonol, Polyimide, etc.

Slide Ring Color

Black, Green, Coffee, Yellow, etc.

O Ring Material

NBR or FKM

Color

Black or Brown

Speed

≤15m/s

Temperature

-45 to 200℃

Pressure

-

Medium

Mineral oil-based hydraulic fluids, barely flammable hydraulic fluids, water, air, and others

Application

Ceramic machines, Heavy duty cylinders, Injection molding machines, Presses, Steel hydraulic, etc.

Standard or can fit the groove

Comply with the standard of WE30/31/32, WE33/34/35, ES56130/31/32, ES56133/34/35, GSZ, Trelleborg-WE3 series, Parker-AD series

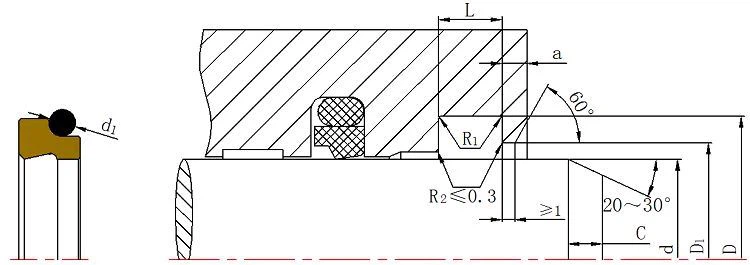

Installation Dimension table based on Metric Size (mm)

d h9

D H9

L +0.2

D1 H11

O Ring CS d1

a

R1≤

C≥

6~10

d+4.8

3.7

d+1.5

1.8

2

0.4

2

12~63

d+6.8

5

d+1.5

2.65

2

0.4

2

65~250

d+8.8

6

d+1.5

3.55

3

0.8

3

260~400

d+12.2

8.4

d+2

5.3

4

0.8

3

440~630

d+16

11

d+2

7

4

1.2

5

680~1200

d+20

14

d+2.5

8.6

5

1.6

7.5


Features

The Hydraulic Cylinder Wiper Seals contain the following features:

● Small installation slot

● Excellent sliding performance

● High wear resistance and long service life

● Minimal breakthrough and dynamic sliding friction

● No stick-slip

● Stable motion is guaranteed even at low speeds



The company has 5,000 square meters of professional production plants, 2000 square meters of constant temperature and humidity production workshop, and dozens (sets) of advanced production equipment.

Own a professional and technical production team and sales service team.

The selection of raw materials are international first-line brand suppliers, To ensure product quality, we promise that we won't add waste (recycled materials) to the material.


We have the ability to develop PU Seal Molded Parts Hydraulic Dust Seals Wiper Seals-Pru independently that can develop new products according to customer needs, and ensure that the quality of the products meets customer requirements. We seize opportunities, embrace change, continue to innovate, and never stop. We know that every contract is an expectation and a great trust. We never dare to slack off.
