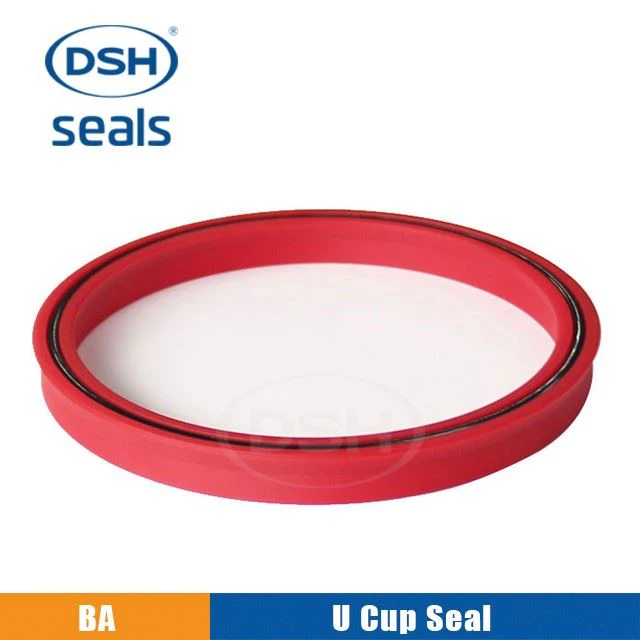

O-Ring Energized Rod Seals BA
Model: BA
Temperature: -35/+80℃
Speed: ≤0.5m/s
Pressure: ≤35MPa
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description
U-cup rod seals BA is a compact seal design for hydraulic applications. Due to its symmetric design, the seal can also be used as a rod seal.
The O-ring guarantees the pre-loading of the seal lips, even under low pressures or vacuum. Due to the good setting behavior of the elastomer O-ring, this pre-loading is largely constant. As system pressure increases, compression of the sealing edges rises due to the pressure-dependent deformation of the seal profile.
The sealing force is basically independent of temperature changes, and even a certain degree of wear will ensure the necessary pre-compression. The lip is loaded due to the increase in system pressure, and this system pressure is transmitted to the lip through the O-ring that is deformed under pressure.
Seal Ring Material | PU |
Seal Ring Color | Red, Blue or Ivory |
O Ring Material | NBR |
O Ring Color | Black |
Speed | ≤0.5m/s |
Temperature | -35 to 80℃ |
Pressure | ≤35MPa |
Medium | Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others |
Application | Mobile hydraulics, Standard cylinders, Machine tools, Injection moulding machines, Presses etc. |
Standard or can fit the groove | Comply with standard of Parker’s BA series. |
Feature
● Extreme wear resistance
● Easy to install
● Insensitive to pressure peaks
● High extrusion resistance
● Impact resistance, anti-extrusion, small compression set
● Exceptionally high static and dynamic sealing performance
● Suitable for extremely working condition
The company has 5,000 square meters of professional production plants, 2000 square meters of constant temperature and humidity production workshop, dozens (sets) of advanced production equipment.
Own a professional and technical production team and sales service team.
The selection of raw materials are international first-line brand suppliers, In order to ensure product quality, we promise that don't add waste (recycled materials) in the material.
